KOMBIS MT

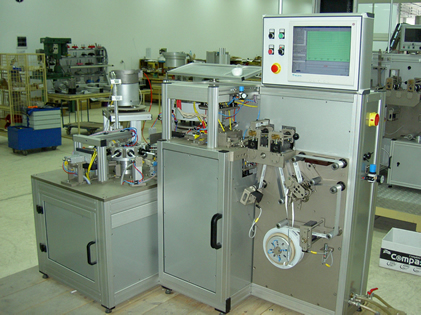

KOMBISMT 5500 is
intended for small size squeeze laminate tube
production. The standard machine handles ABL (Aluminum
Barrier Laminate) with aluminum layer thickness from 12
to 20 µm. The total web thickness has to be between 175
and 275 µm.The foil should be wound around a reel with
core diameter 150 mm.
The basic machine consists of two main units:
Tube body making module;
Tube module.
The machine use injection molded plastic shoulders and
caps. The web to be used may be printed first along its
length.
The control of the KOMBIS MT 5500 is based on a
computer. All movements are controlled, which ensures
high reliability and safety. The machine can be
connected to a local computer network and to Internet
for remote monitoring and control.
The welds of the tube body and the shoulder are made by
high-frequency transistor generators, which guarantee
excellent quality of welding with high reliability.
PARAMETER
VALUE
1. Power supply:
- Voltage
- Frequency
3P+N+PE
3N~380 ±5% V
50±2% Hz
2. Installed power
13 kVA
3. Consumed power
up to 4 kVA
4. Regularity of switching
100 %
5. Technological air
- flow rate
- pressure
- mechanical impurity
400 l/min
8 bar
< 5µm
6. Cooling water
- flow rate
- pressure
- temperature
0.8.10-3 m3/s (20 l/min)
0.3-0.35 MN/m2 (3-3.5 atm)
288K (15°С)
7. Dimensions
- Length
- Width
- Height
2135 mm
1315 mm
2270 mm
8. Degree of protection against solid
parts and water permeability
IP 1XA
9. High-frequency generator - tubes
- Consumed power
- HF-output power
- Working frequency
- Regularity of switching
3 x 5 kVA
3 x 4 kW
270÷370 kHz
14%
10. High-frequency generator – shoulders
- Consumed power
- HF-output power
- Working frequency
- Regularity of switching
3 x 5 kVA
3 x 4 kW
270÷370 kHz
14%
11. Size of tubes
- diameter
- length
Ø10 ÷ Ø16 mm
60 ÷ 90 mm
12. Consumables:
- Foil types
- Total thickness
- Barrier layer thickness
- Orientation of print
ABL
0.175-0.200 mm
0.012-0.020 mm
Longitudinal
13. Weight
900 kg
14. Nominal capacity
55 tubes/minute
15. Operating mode
automatic
KOMBIS MT operates in normal climatic conditions:
temperature - 278-313К (5 to 40°С);
relative humidity, at temperature 293K (20°С) up
to 90%;
sea level - up to 1000 m;
atmospheric pressure from 0.086 to 0.103МPa;
absence of aggressive, current-carrying or explosive dust
and vapors;
