When ordering a certain type of membrane coupling, please use the following signification:
MS * */* * *.*
MS
Membrane coupling
__ *
Outer diameter D, mm
__ _ */*
Diameters of the connection holes d1/d2, mm
__ _ _/_ *
Length of coupling L, mm
__ _ _/_ _ *
Position of flanges relative to the membrane:
K external
M internal
H external for one flange, internal for the other one
__ _ _/_ _ _.*
Connection of the flanges to the shafts:
A by means of seat screws
B by means of collets
C by other means
Characteristic features:

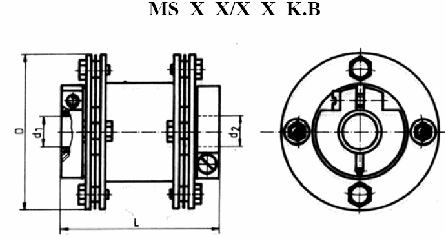

- The flanges are external relative to the membranes
- The flanges are connected to the shafts by means of collets
- Greater length
- Ease of assembly
- Stability of the flange-shaft connection

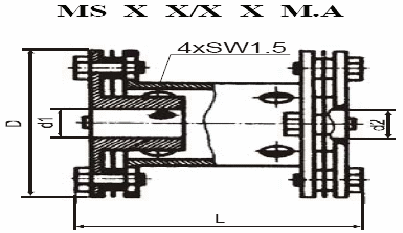

- The flanges are internal or external relative to the membranes
- The flanges are connected to the shafts by means of seat screws
- Simple design
- Smaller length of the coupling
Selection Table
Basic parameters
Membrane coupling, type
MS 35 (*…)
MS 50 (*…)
MS 70 (*…)
Outer diameter of the coupling D, mm
35
50
70
Diameters of the connection holes d1/d2, mm*
7 - 10
8 - 15
8 - 20
Minimum length of the coupling L, mm**
60
Maximum torque transferred Mb, Nm
0.32
0.5
0.8
Admissible axial displacement of the shafts s, mm
0.3
0.4
Admissible radial displacement of the shafts r, mm
Admissible angular displacement of the shafts α, º
2
Weight, g
80
120
180
