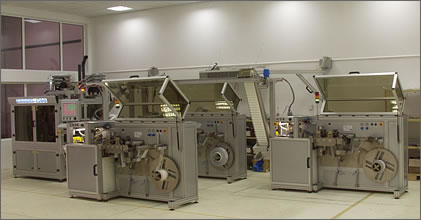

KOMBIS 1500

The line for laminate tubes KOMBIS 1500 consists of 6 main modules:

  • Body maker - 3 modules for production of the tubes' bodies
  • Module Tubes
  • Main transporter - 3-band unit, leading the ready tubes' bodies to the Tube Module
  • Central band unit - charges the average position of the main transporter
  • Side band units - charge the end positions of the main transporter
  • Vibrating hoppers feeding shoulders and caps.

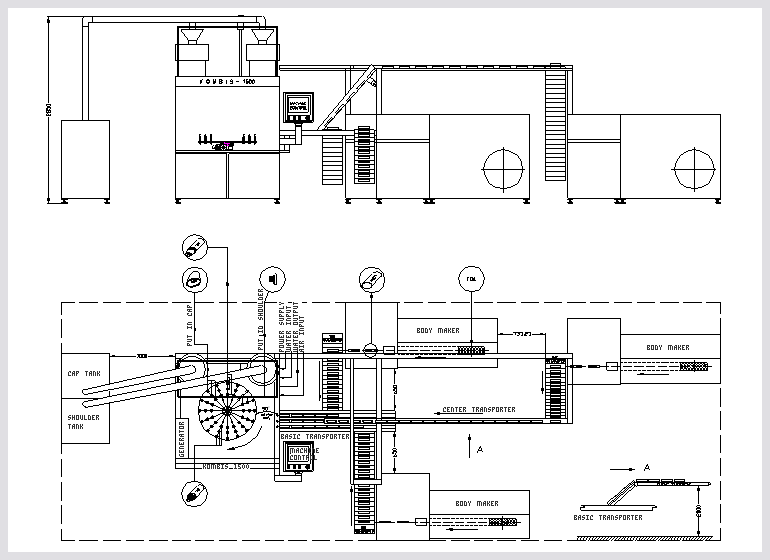

Layout diagram:

PARAMETER

VALUE

1. Power supply:

- Voltage

- Frequency

3P+N+PE

3N~380 ±5% V

50±2% Hz

2. Installed power

41.6 kVA

3. Consumed power

up to 11 kVA

4. Regularity of switching

100 %

5. Technological air

- flow rate

- pressure

- mechanical impurity



1500 l/min

8 bar

< 5µm

6. Cooling water

- flow rate

- pressure

- temperature



1.10-3 m3/s (25 l/min)

0,4-0,5 MN/m2 (4-5 atm)

288K (15°С)

7. Dimensions

- Lenght

- Width

- Height



10060 mm

3630 mm

2850 mm

8. Degree of protection against solid
parts and water permeability



IP 1XA

9. High-frequency generator - tubes

- Consumed power

- HF-output power

- Working frequency

- Regularity of switching



3 x 5 kVA

3 x 4 kW

270÷370 kHz

14%

10. High-frequency generator – shoulders

- Consumed power

- HF-output power

- Working frequency

- Regularity of switching



3 x 5 kVA

3 x 4 kW

270÷370 kHz

14%

11. Size of tubes

- diameter

- length



Ø16 ÷ Ø50mm

90 ÷ 200mm

12. Nominal capacity

150 tubes/minute

13. Operating mode

automatic

KOMBIS 1500 operates in normal climatic conditions:

  • temperature - 278-313К (5 to 40°С);
  • relative humidity, at temperature
    293K (20°С) up to 90%;
  • sea level - up to 1000 m;
  • atmospheric pressure from 0.086 to 0.103МPa;
  • absence of aggressive, current-carrying or explosive dust and vapors;
