When ordering a certain type of
membrane coupling, please use the following signification:
SS X/X X X/X X
SS _/_ _ _/_ _
Bellows coupling
__ X/X _ _/_ _
Outer diameter, and
length of
coupling D/L, (mm)
__ _/_ X _/_ _
Nominal turning moment
__ _ _/_ _ X/X _
Diameters of the connection
holes d1/d2, mm
__ _ _/_ _ _/_ X
Connection of the
flanges to the shafts:
A by
means of seat screws
B by
means of collets
C by
other means

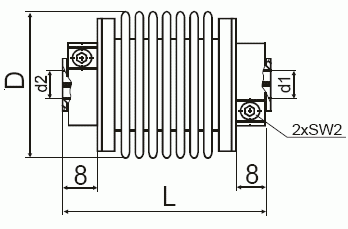

SS 16/26 X X/X B
Characteristic features:
. Smaller torsional resistance.
. Greater elasticity relative to axial, radial and angular displacements of
shafts.
. Small dimensions.
. Small weight.
. Ease to assembly.

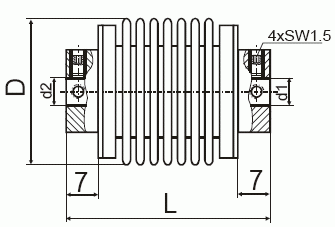

SS 16/26 X X/X A
Characteristic features:
. The flanges are connected to the shafts by means of seat screws
. Greater elasticity relative to axial, radial and angular displacements of shafts.
. Small dimensions.
. Small weight.
. Simple design.
