Application

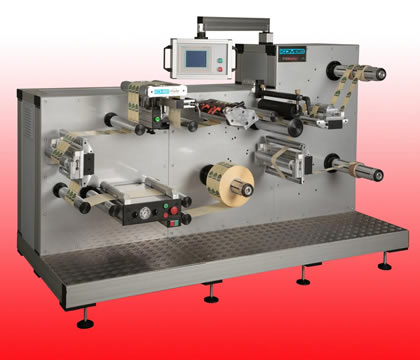

SlitMaster 350 is a slitting machine for polymer,
aluminum and paper foil. It is designed for the labels
and soft packaging industry using web up to 330 mm. It
can slit the web up to 10 tapes with min width 25 mm.
Specification
- unwinding module for web reels with up to Ø650 mm
diameter and shaft for cores Ø76 mm;
- slitting module for tapes with min width 25mm;
- tension control;
- DC-motors drive, SIEMENS PLC control;
- ultrasonic along the edge web guiding;
- touch panel machine control;
- two receiving shafts with full roll diameter up to 500
mm and pneumatic fastening for Ø76 mm cores;
- max speed 150 m/min.
Options
- fastening for cores with diameter Ø40 mm, Ø70 mm and
Ø152 mm for the unwinding and receiving shaft;
- web guiding along a printed line;
- up to 15 slitting knifes;
- set and count of output reel label number;
- set of the length of the ready roll;
- set the max diameter of ready roll.
PARAMETER
VALUE
1. Power supply net:
- Voltage
- Frequency
3P+N+PE
3N~380 ±5% V
50±2% Hz
2. Power installed
1 kVA
3. Power consumed
up to 1.5 kVA max
4. Periodicity of switching (SF)
100 %
5. Technological air:
- debit
- pressure
- mechanical impurity
1 l/min
8 bar
< 5µm
6. Cooling water:
- debit
- pressure
- temperature
not required
7. Overall sizes:
- length
- width
- height
3330 mm
1150 mm
1350 mm
8. Protection degree against penetration of solid
objects and water
