KOMBIS 5550

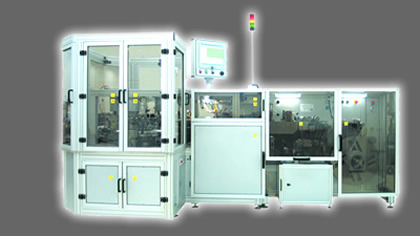

Developing our technology we created - KOMBIS 5550 – a laminate tube line for ABL and PBL squeeze tube production.

The line is capable of making tubes with diameters up to 2”. It is equipped with a computer control, which makes the operation and the adjustment of the modes very convenient and easy. There are many improvements in comparison with previous models. The line is equipped with new safety doors and covers. A new method for take away the ready product allows maintaining the tube orientation, which facilitates attaching to the line additional equipment for filling or packaging of the tubes.

Click here for the sizes of the tubes that this machine can produce or to calculate your tube size go to Tube Volume Calculator.

Download the machine footprint here: Footprint_5550.pdf

PARAMETER	VALUE
1. Power supply net: - Voltage - Frequency	3P+N+PE 3N~380 ±5% V 50±2% Hz
2. Power installed	12 kVA
3. Power consumed	up to 5 kVA max
4. Periodicity of switching (SF)	100 %
5. Technological air: - debit - pressure - mechanical impurity	500 l/min 8 bar < 5µm
6. Cooling water: - debit - pressure - temperature	0,35.10^-3 m³/s (20 l/min) 0,4-0,5 MN/m² (4-5 atm) 288K (15°С)
7. Overall sizes: - length - width - height	3330 mm 1150 mm 1350 mm
8. Protection degree against penetration of solid objects and water	IP 1XA
9. High-frequency generator - tubes: - Consumed power - HF-output power - Working frequency - Regularity of switching	5,5 kW 4,4 kW 270 ÷ 370 kHz 14%
10. High-frequency generator – shoulders: - Consumed power - HF-output power - Working frequency - Regularity of switching	5,5 kW 4,4 kW 270 ÷ 370 kHz 14%
11. Tube sizes: - diameter - length	Ø16 ÷ Ø50mm 80 ÷ 200mm
12. Rated efficiency	55 tubes/minute
13. Operating mode	automatic
14. Noise level	80dB
15. Weight	1370 kg
16. Consumables: - Foil types - Total thickness - Orientation of print	ABL and PBL 0,22 ÷ 0,35 mm Longitudinal


Module "Shoulders"	Module "Caps"	PBL Module

Top Seal Module	Elevator

KOMBIS 5550 automatic line can be optionally equipped with additional modules to extend its basic functionality. The modular principle in the machine is a main concept. The tool change has been simplified. This reduces considerably the readjustment time and dos not require highly qualified personnel.

Additionally, a high-frequency top sealing module for attaching membranes to the tube shoulder is offered, elevators for automatic filling of the hoppers and a module for production of oval tubes as well as a module for production of PBL tubes. The cap tightening is ensured by a separate module, which is standard element of this machine.
