KOMBIS - Squeeze Laminate Tube Line

Kombis 8001

See Tube Photo Gallery here:

See Machine Photos here:

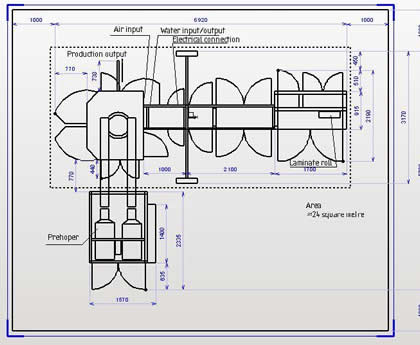

Layout diagram:

KOMBIS 8001

Newest laminate tube line - KOMBIS 8001 offers convenience and low cost production.

It is capable of production of ABL as well as PBL side seam tubes at the speed up to 80 tubes / min.

With easy and quick tool change and inexpensive tooling it guarantees a cost effective tube production.

The simplicity of the design does not require highly qualified personal to operate it.

Its wide range of tube diameters and tube lengths makes it desirable for almost any tube production.

As a whole laminate tube line incorporated in a single machine it is the best solution for laminate tube production.

Click here for the sizes of the tubes that this machine can produce or to calculate tour own tube volume visit Tube Volume Calculator.

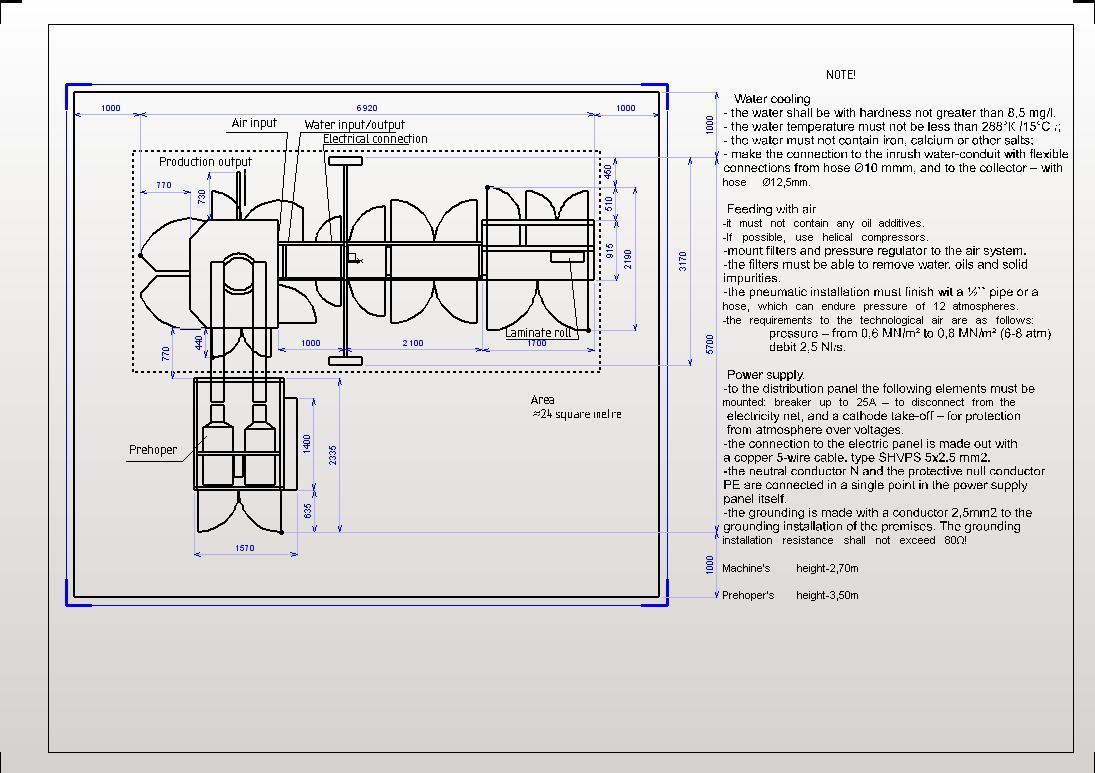

To download machine footprint select one of the following links:

DWG, eDRW, jpg, DFT

PARAMETER

VALUE

1. Power supply net:

- Voltage

- Frequency

3P+N+PE

3N~380 ±5% V

50±2% Hz

2. Power installed

12 kVA

3. Power consumed

up to 5.2 kVA max

4. Periodicity of switching (SF)

100 %

5. Technological air:

- debit

- pressure

- mechanical impurity

500 l/min

8 bar

< 5µm

6. Cooling water:

- debit

- pressure

- temperature

0,45.10^-3 m³/s (30 l/min)

0,3-0,4 MN/m² (3-4 atm)

288K (15°C)

7. Overall sizes (including hopers):

- length

- width

- height

6920 mm
5700 mm

3500 mm

8. Protection degree against penetration of solid objects and water

IP 1XA

9. High-frequency generator - tubes:

- Consumed power

- HF-output power

- Working frequency

- Regularity of switching

5,5 kW

4,4 kW

270 ÷ 370 kHz

100%

10. High-frequency generator – shoulders:

- Consumed power

- HF-output power

- Working frequency

- Regularity of switching

5,5 kW

4,4 kW

270 ÷ 370 kHz

14%

11. Tube sizes:

- diameter

- length

Ø19 ÷ Ø50.8 mm

57.15 ÷ 200 mm

12. Rated efficiency

- ABL

- PBL

80 tubes/minute

70 tubes/minute

13. Operating mode

automatic

14. Noise level

80dB

15. Weight

4000 kg

16. Consumables:

- Foil types

- Barrier layer thickness

- Total thickness

- Designn print orientation

ABL and PBL

0,02 ÷ 0,04 mm

0,20 ÷ 0,35 mm

Longitudinal


Module "Shoulders"	Module "Caps"	PBL Module

Top Seal Module	Elevator

KOMBIS 8001 automatic laminate tube line can be optionally equipped with additional modules to extend its functionality.

The machine is build on the modular principle. The tool change has been simplified which reduces considerably the readjustment time and do not require highly qualified personnel.

Additionally, a high-frequency top sealing module is offered, as well as a module for production of PBL-tubes, and a module for production of oval tubes. The tightening of the cap-winding is ensured by a specially designed module, which is standard element of the machine as well as the hopper auto filling station
