KOMBIS FFS

Laminate tube line KOMBIS FFS produces squeeze laminate tubes of web with thickness 0.130 – 0.200 mm. The line is designed for production of low-cost plastic side seam tubes and many of the included mechanisms are simplified as much as possible.

The standard machine works with Aluminum Barrier Layer (ABL) laminate. Production of PBL (APL) laminate tubes is optional. The tube design is positioned lengthwise on the web likeall other KOMBIS lines. The required plastic shoulders and caps are usually pre-assembled together. They are fed into a vibrating hopper, from where they are transferred to the tube assembling area. The assembling of the caps to the shoulders is done on a separate machine – ACS-701M. The speed of the ACS-701M machine is 70 sets per minute and it enough to feed two squeeze laminate tube production lines with parts.

Click here for the sizes of the squeeze laminate tubes that can be produced by this machine.

This line is capable of making filling and closing laminate bottles. Here you can find more information about LamiBottle^®

Find more about some other models FFS lines:

KOMBIS FFS 60 and KOMBIS FFS 200

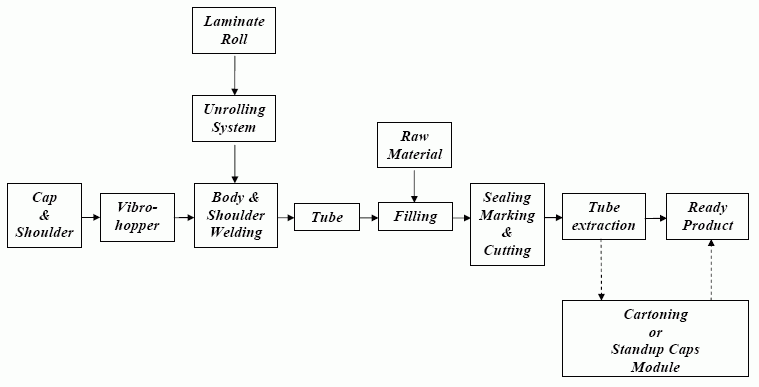

Flow Chart:

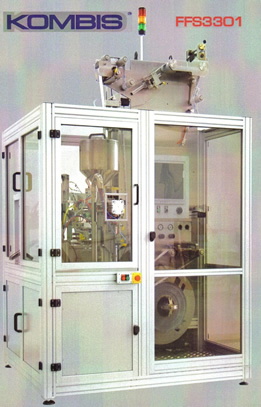

Kombis FFS

PARAMETER	VALUE
1. Power supply net: - Voltage - Frequency	3P+N+PE 3N~380 ±5% V 50±2% Hz
2. Power installed	12 kVA
3. Power consumed	up to 5 kVA max
4. Periodicity of switching (SF)	100 %
5. Technological air: - debit - pressure - mechanical impurity	290 l/min 8 bar < 5 µm
6. Cooling water: - debit - pressure - temperature	0,35.10^-3 m³/s (20 l/min) 0,4-0,5 MN/m² (4-5 atm) 288K (15°С)
7. Overall sizes: - length - width - height	1605 mm 1430 mm 2450 mm
8. Protection degree against penetration of solid objects and water	IP 1XA
9. High-frequency generator - tube and shoulder: - Consumed power - HF-output power - Operation frequency - Regularity of switching	5,5 kW 4,4 kW 270 ÷ 370 kHz 9%
10. High-frequency generator – sealing: - Consumed power - HF-output power - Operation frequency - Regularity of switching	0,8 kW 0,3 kW 270 ÷ 370 kHz 9%
11. Dosage	adjustable up to 250 cm³
12. Dosage accuracy	+3%
13. Operating mode	automatic
14. Noise level	80 dB
15. Weight	1500 kg
16. Consumables: - Foil types - Total thickness - Barrier layer thickness - Orientation of print - Paste product with viscosity	ABL 0.175 mm 0.0012 mm Longitudinal 170-300 Ns/m²
17. Tube sizes: - diameter - ellipse - length	Ø16 ÷ Ø35 mm 22 x 15 mm 80 ÷ 120 mm
18. Speed	up to 40 tubes/min
19. Optional modules - Standup Caps module - Cartoning module - Laminate Bottle making module

	Picture not available	Picture not available
Module "Caps and Shoulders"	Cartoning Module	Laminate Bottle Making Module
	Picture not available
Elevator	Standup Cap

KOMBIS FFS automatic squeeze laminate tube line can be optionally equipped with additional modules to extend its basic functionality.

The modular principle in the machine is a main concept. The tool change has been simplified. This reduces considerably the readjustment time and dos not require highly qualified personnel.

Additionally, a cartoning module is offered, a module for production of oval tubes, as well as capping module for attaching stand up caps.
